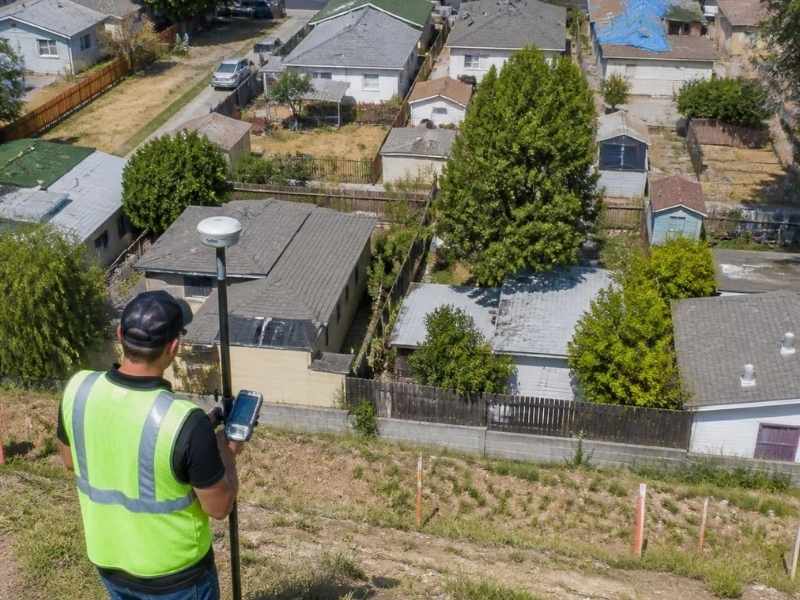

A cluster of small old lots under one owner rarely lines up with how the land actually gets used. Survey mapping before turning several small lots into new buildable parcels sorts out that mismatch, reconstructing each old lot and then designing new ones that work. The original lots might be too small, oddly shaped, or crossed by buildings and fences that ignore the recorded lines. The survey establishes what exists, then supports rearranging it into parcels suited to real development.

Reconstructing Each Existing Lot Within the Combined Ownership

Before rearranging anything, the survey reconstructs each existing lot within the combined ownership. The recorded plats, deeds, monuments and prior conveyances all get compared to establish what the current lots actually are.

This reconstruction can be involved. A combined ownership might include several small lots created long ago, each with its own deed and history. The surveyor researches how each one was established, recovers the corners, and pieces together the current configuration from the records and the field evidence.

Establishing the existing lots grounds the whole reconfiguration. Rearranging the parcels starts with knowing exactly what’s there now, lot by lot. The survey provides that, so the new design builds on an accurate picture of the current lots rather than assumptions about them.

Identifying Old Lines That No Longer Match Physical Use

Old lot lines and current use often disagree, so the survey identifies where they diverge. Fences, buildings, drives, utilities and occupation patterns may all cross the historical lot configuration.

The mismatch is common with old small lots. A building might sit across two lots that were never combined. A fence might run somewhere other than the recorded line. Drives, utilities and years of occupation might follow patterns that ignore the original divisions entirely. The survey maps where the physical use crosses the old lines.

Revealing these divergences matters for the reconfiguration. A building straddling two lots affects how they can be rearranged. Utilities crossing old lines might need easements in the new design. The survey shows where the current use conflicts with the historical configuration, informing how the new parcels should be shaped.

Designing New Parcels Around Development Requirements

With the existing conditions established, the survey supports designing new parcels around development requirements. Dimensions, frontage, access, setbacks, utilities and site-planning constraints all influence the replacement boundaries.

The new parcels have to be buildable, which the old ones often weren’t. Small historical lots might be too narrow or too shallow for current development, so the reconfiguration combines and redraws them into parcels that meet the requirements. Frontage, access and setbacks all shape where the new lines can go.

The survey provides the accurate base this design needs. Drawing buildable parcels requires knowing the true dimensions, the existing improvements, and the constraints. The survey supplies all of it, so the new parcels get designed to work for development rather than inheriting the problems of the old small lots.

Removing or Addressing Obsolete Internal Rights

Old lots carry old rights, so the reconfiguration has to remove or address obsolete internal rights. Former easements, building lines, alleys and restrictions may need release, relocation, or continuation as the parcels change.

These leftover rights can obstruct the new design. An easement serving an old interior lot line might no longer make sense once the lines move. An old alley or building line might sit where the new parcels need to build. A restriction from the original lots might conflict with the intended use. Each has to be dealt with.

The survey identifies these internal rights and their positions. Some get released because they no longer serve a purpose. Some get relocated to fit the new configuration. Some continue because they’re still needed. The survey maps them, so the reconfiguration addresses each obsolete right rather than leaving it to cloud the new parcels.

Producing Recordable Geometry for the New Configuration

The reconfiguration ends with official new parcels, so the survey produces recordable geometry for the new configuration. Plats, descriptions, closures, monumentation and approvals all establish the buildable parcels.

Recordable geometry has to be precise. The new plat shows the parcels with dimensions and areas, and the legal descriptions have to close mathematically and match the plat exactly. Any disagreement creates a title problem. The survey produces geometry that satisfies these requirements.

Monumentation and approval complete the process. The new corners get marked, the plat gets reviewed and approved by the jurisdiction, and the configuration gets recorded. The survey’s recordable geometry carries the reconfiguration through this process, turning the rearranged small lots into legally established buildable parcels ready for development.
